Flexpipe Products
|
|
FP301 / FP301 HT
|
FP601 / FP601 HT
|
FC901
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2"
|
3"
|
4"
|
5"
|
6"
|
2"
|
3"
|
4"
|
5"
|
6"
|
3"
|
4"
|
|||
|
Pressure
|
psi
|
750
|
1,500
|
2,250
|
|||||||||||
|
Temperature
|
°F
|
140°F or 180°F
|
140°F or 180°F
|
140°F
|
|||||||||||
|
Outside Diameter
|
in
|
2.7
|
3.8
|
4.9
|
6.2
|
7.1
|
2.9
|
4
|
5.1
|
6.5
|
7.5
|
3.95
|
5.07
|
||
|
Inside Diameter
|
in
|
2.1
|
3
|
3.9
|
4.9
|
5.6
|
2.1
|
3
|
3.9
|
4.9
|
5.6
|
3.02
|
3.9
|
||
|
Pipe Weight
|
lb/ft
|
1.1
|
2
|
3.3
|
5.6
|
7
|
1.6
|
2.9
|
4.6
|
7.9
|
10.5
|
3.4
|
5.6
|
||
|
Pipe Weight
(Full of Water)
|
lb/ft
|
2.7
|
5.1
|
8.4
|
13.8
|
17.8
|
3.1
|
6
|
9.8
|
16.1
|
21.1
|
5.6
|
10.8
|
||
|
Operational MBR
|
ft
|
4
|
6
|
7
|
10
|
11
|
4
|
6
|
7
|
10
|
11
|
6
|
7
|
||
|

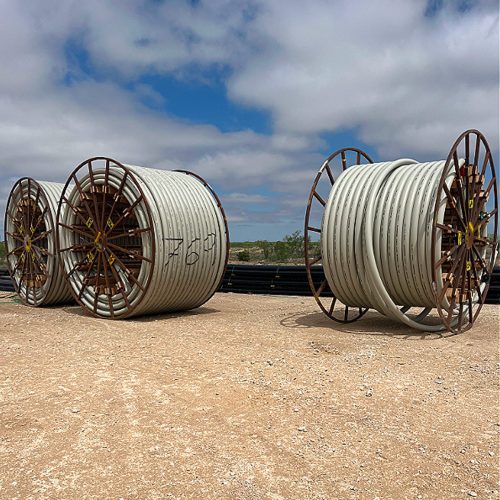

Length per Reel*
|
ft
|
3,610
|
2,495
|
2,410
|
1,198
|
1,150
|
5,740
|
3,280
|
1,870
|
1,115
|
1,150
|
2,018
|
1,722
|
||
|
Reel Diameter
|
ft
|
12
|
14
|
12
|
14
|
12
|
|||||||||
|
Reel Width
|
ft
|
4
|
8
|
4
|
8
|
4
|
8
|
||||||||
|
Reel Weight - Full
|
lbs
|
5,550
|
6,490
|
10,435
|
9,190
|
12,323
|
7,405
|
8,180
|
11,200
|
10,980
|
15,255
|
8,415
|
12,260
|
||
|
Reel Weight - Empty
|
lbs
|
1,500
|
2,530
|
3,300
|
1,500
|
2,530
|
3,300
|
1,500
|
2,530
|
||||||
|
Fitting OD**
|
in
|
3.2
|
4.4
|
5.5
|
7
|
8
|
3.4
|
4.6
|
5.7
|
7.3
|
8.4
|
4.55
|
5.68
|
||
|
Fitting ID**
|
in
|
1.8
|
2.5
|
3.4
|
4.2
|
4.9
|
1.8
|
2.5
|
3.4
|
4.2
|
4.9
|
2.50
|
3.38
|
||
|
|
FP301 / FP301 HT
|
FP601 / FP601 HT
|
FC901
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2"
|
3"
|
4"
|
5"
|
6"
|
2"
|
3"
|
4"
|
5"
|
6"
|
3"
|
4"
|
|
|
Pressure
|
kPa
|
5,171
|
10,342
|
15,513
|
|||||||||
|
Temperature
|
°C
|
60°C or 82°C
|
60°C or 82°C
|
60°C
|
|||||||||
|
Outside Diameter
|
mm
|
69
|
97
|
124
|
157
|
179
|
73
|
101
|
130
|
165
|
191
|
100
|
129
|
|
Inside Diameter
|
mm
|
54
|
77
|
99
|
125
|
142
|
54
|
77
|
99
|
125
|
142
|
77
|
99
|
|
Pipe Weight
|
kg/m
|
1.7
|
3
|
4.9
|
8.3
|
10.8
|
2.4
|
4.3
|
6.9
|
11.8
|
15.6
|
5.1
|
8.4
|
|
Pipe Weight
(Full of Water)
|
kg/m
|
4
|
7.6
|
12.6
|
20.5
|
26.6
|
4.7
|
9
|
14.6
|
24
|
31.4
|
9.8
|
16.1
|
|
Operational MBR
|
m
|
1.2
|
1.8
|
2.1
|
3
|
3.4
|
1.2
|
1.8
|
2.1
|
3
|
3.4
|
1.8
|
2.1
|
|
Length per Reel*
|
m
|
1,100
|
760
|
735
|
365
|
350
|
1,100
|
700
|
570
|
340
|
350
|
615
|
525
|
|
Reel Diameter
|
m
|
3.7
|
4.3
|
3.7
|
4.3
|
3.7
|
|||||||
|
Reel Width
|
m
|
1.2
|
2.4
|
1.2
|
2.4
|
1.2
|
2.4
|
||||||
|
Reel Weight - Full
|
kg
|
2,520
|
2,945
|
4,735
|
4,170
|
5,590
|
3,355
|
3,710
|
5,085
|
4,985
|
6,920
|
3,820
|
5,560
|
|
Reel Weight - Empty
|
kg
|
680
|
1,150
|
1,497
|
680
|
1,150
|
1,500
|
680
|
1,150
|
||||
|
Fitting OD**
|
mm
|
82
|
111
|
140
|
178
|
203
|
85
|
116
|
144
|
186
|
213
|
115.6
|
144.3
|
|
Fitting ID**
|
mm
|
45
|
64
|
86
|
108
|
124
|
45
|
64
|
86
|
108
|
124
|
63.5
|
85.9
|
**Lengths and reel weights are approximate as they may vary depending on the manufacturing run.
**Fitting dimensions do not include O.D. of flange provided for flanged end fittings. Fitting O.D. and I.D apply to flanged end, weld-neck and pipe-to-pipe coupling fittings.
Unmatched strength and durability. Rapid, cost-effective installation.
Flexpipe takes pride in delivering high-quality and reliable products to our clients. With an unwavering commitment to maintaining safety and integrity, our process is built on best practices – from the initial engineering through deployment, installation, and operation.
To guarantee this quality, we utilize full-scale testing methods that follow API and ASTM guidelines. Our quality testing includes every batch of spoolable composite pipe, ensuring that only the highest quality pipe is shipped.
To truly deliver the best product, we offer a comprehensive range of support services, including design support, project coordination, contractor training, and on-site technical support, and a qualification program in accordance with API 15S.
Flexpipe

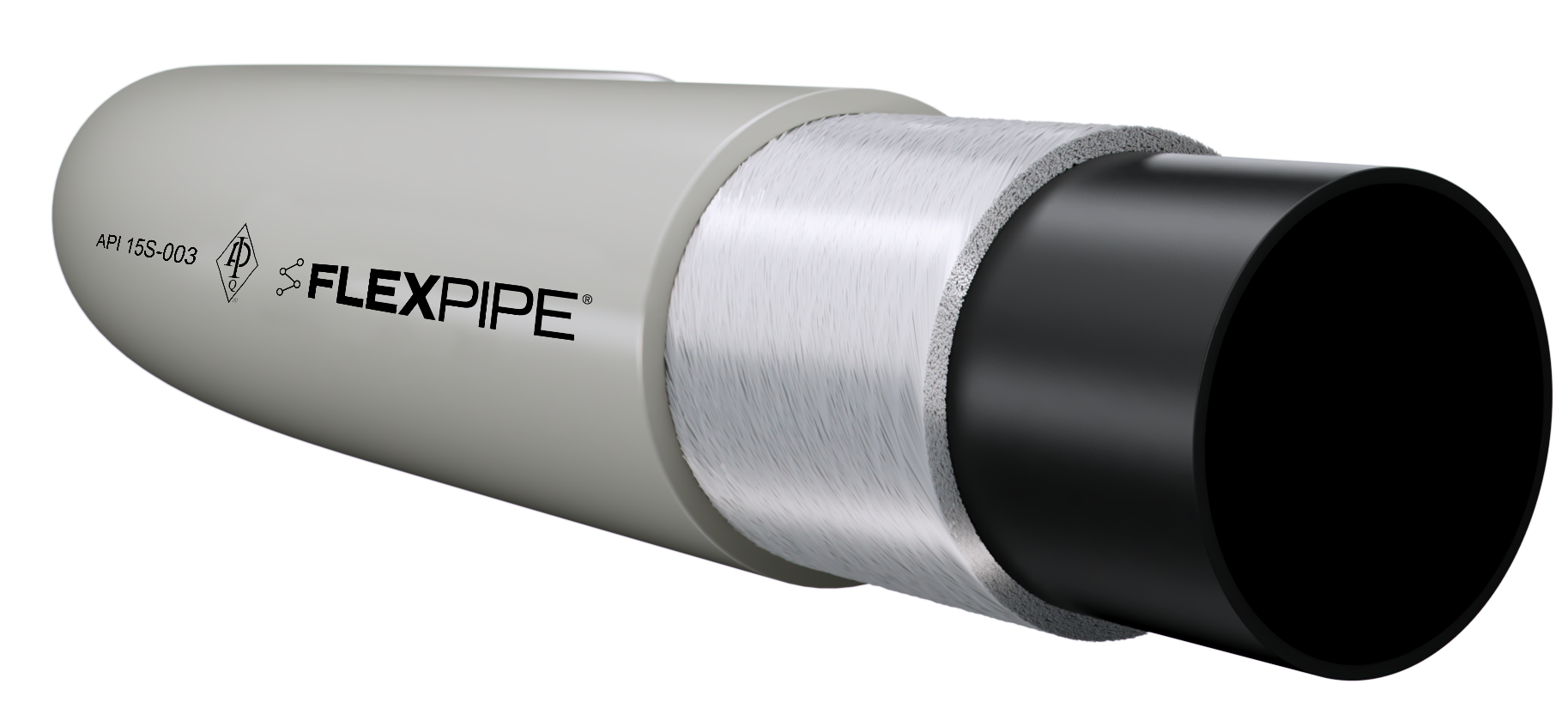

Spoolable, flexible pipe made from thermoplastic liner, a helically-wound reinforcement layer and an external thermoplastic jacket that effectively resists high pressure, corrosion and impact while driving down cost.
2” – 6” Diameter
300, 750 and 1,500 psi pressure ratings
Built to exceed the industry requirements of CSA, API and ASTM standards.
API Monogram Certified
Flexpipe HT
The same benefits as Flexpipe, plus the capability of handling continuous service temperatures up to 180°F (82°C).
2” – 6” Diameter
750 and 1,500 psi pressure ratings
Built to exceed the industry requirements of CSA, API and ASTM standards.
API Monogram Certified
Flexcord
The same benefits as Flexpipe, with a high-strength galvanized steel-cord reinforced design to handle severe pressure cycles and pulsations generated by piston pumps.
Available in 3” and 4” ID sizes
Maximum operating pressure of 2,250 psi
Built to exceed the industry requirements of CSA, API and ASTM standards.
Joining Systems
Flexpipe fittings are reliable and easily repeatable to allow multiple reels of pipe to be efficiently joined while seamlessly connecting to exiting pipeline infrastructure.
Available in either nickel-coated or stainless steel.
Installation Kits
Efficiently equip your next project. Our comprehensive fitting installation kits ensure that Flexpipe is installed consistently and within specification. Kits include a crimper, remote valve, power pack and insertion press.
Get your project up and running with ease.
Digital Enablement

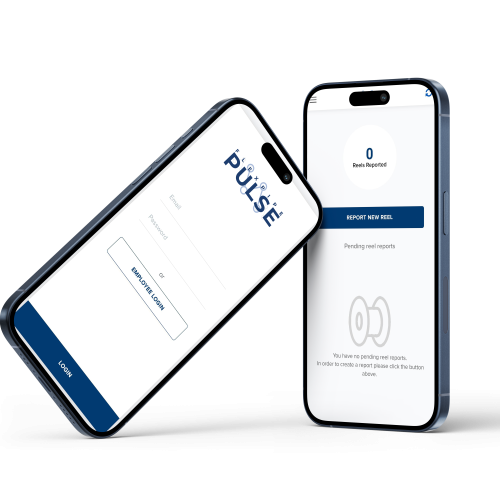

Tailored to your project. Flexpipe Pulse offers easy communication and collaboration between Flexpipe, contractors, and end-users.
Traceability, trackability and inventory management at your fingertips.
